Submitting Results

The “technical” work is now done. The CAST Highlight Agent has done its job and produced scan results for both applications and we’re going to upload them to our portfolio.

Let’s go back to the CAST Highlight web portal (using our EC2 instance if we used that for scanning) and click on the APPLICATION SCANS menu (if you don’t see this menu, remember the trick to switch to your own subdomain). Our campaign is still pending: Campaign Launched

Uploading the Code Scan Results

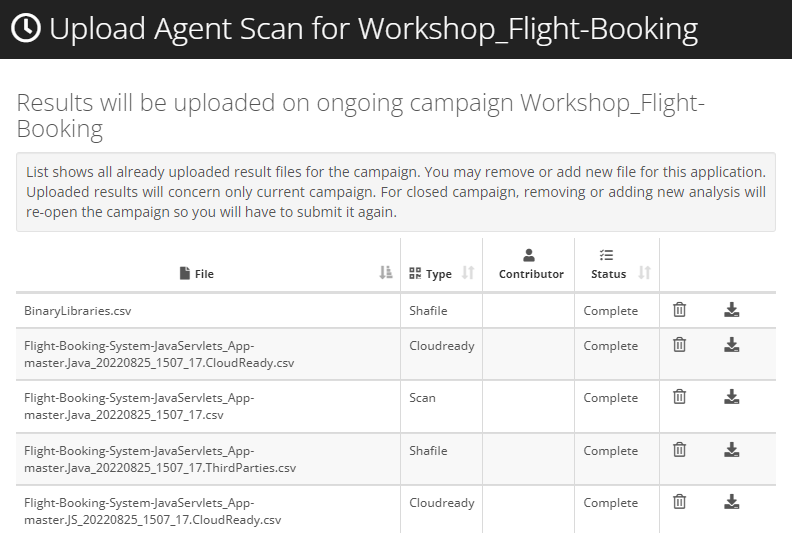

Pick one of the apps and click on the Upload Results button. You’ll be prompted to either browse for the results file or drag-and-drop it. Once that’s done you’ll see that the interface processes the data to completion. Data Gathered

Close the dialog and you’ll see that the code scan results are now ready for submitting: Halfway there But we’re not done yet: we also need to capture some basic non-technical information about the application. Click on the Survey 0/2 button.

Filling in the Surveys

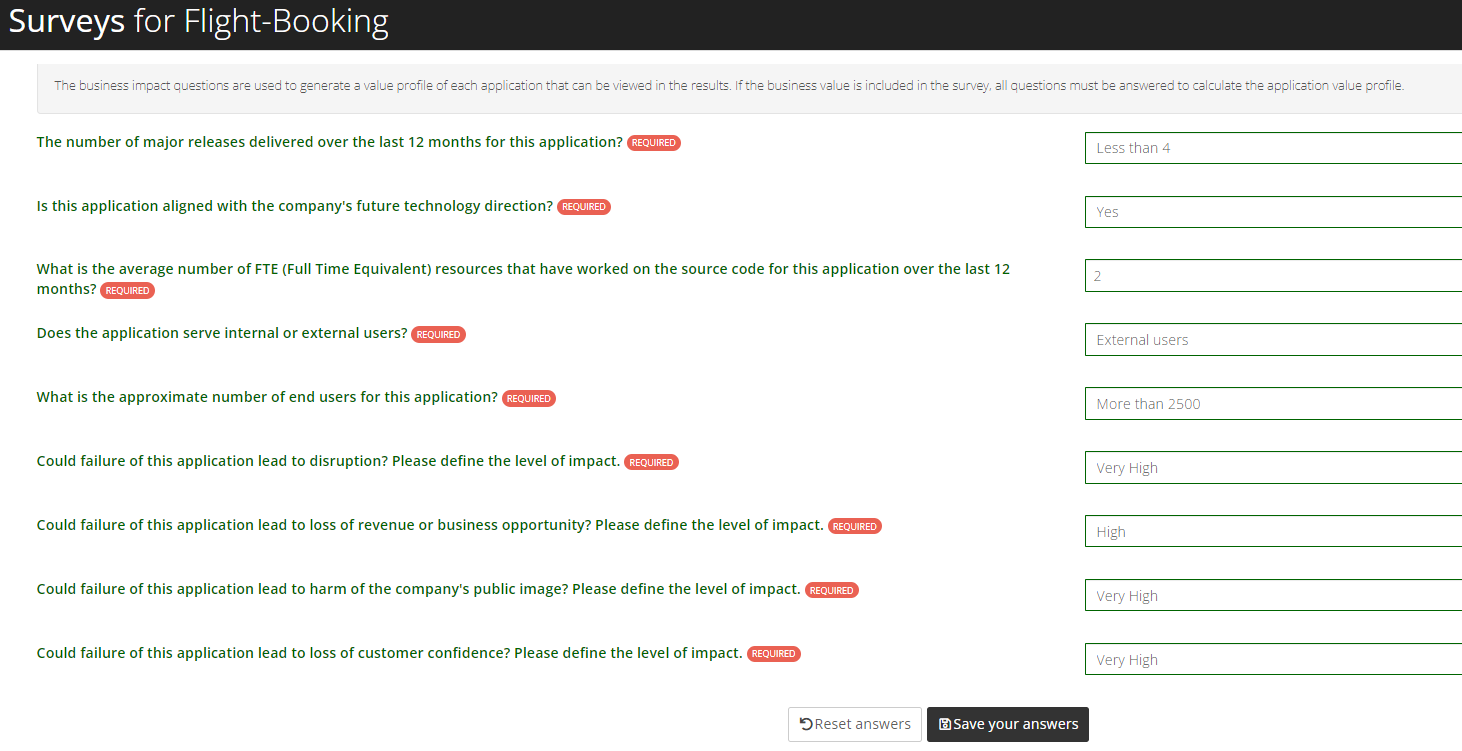

The surveys we selected during the campaign creation are pretty straightforward. There’s a lot more that can be done through surveys, but we’ll keep it simple here so you can see how it works. You have two surveys to complete:

  • Application Properties
  • Business Impact

The answers you provide don’t really matter for this workshop, but you’ll see that they do have an impact on the application results afterwards. First Survey Here we decided to make this application quite important for the company: Second Survey And once the answers are saved, we can click on the Submit button and let the interface work its magic. All done While it does that, you should repeat the process with the second application so that the campaign is wrapped-up.

At this stage, if you have used an EC2 instance to perform the scans and would rather go back to the comfort of your own local browser, you may do so as we will no longer use the local code scan agent or the windows machine (we’ll clean it up at the end of the workshop).

Onto the results consumption

Now that we have performed the scans and uploaded the results, we can get to the nice part: getting insights from them…
